Generate a Concept Design

Before the Concept Design outputs can be generated, the project and iteration must first be saved. This can be done from the Save button in the header. It is useful to give iterations unique names for easy reference later.

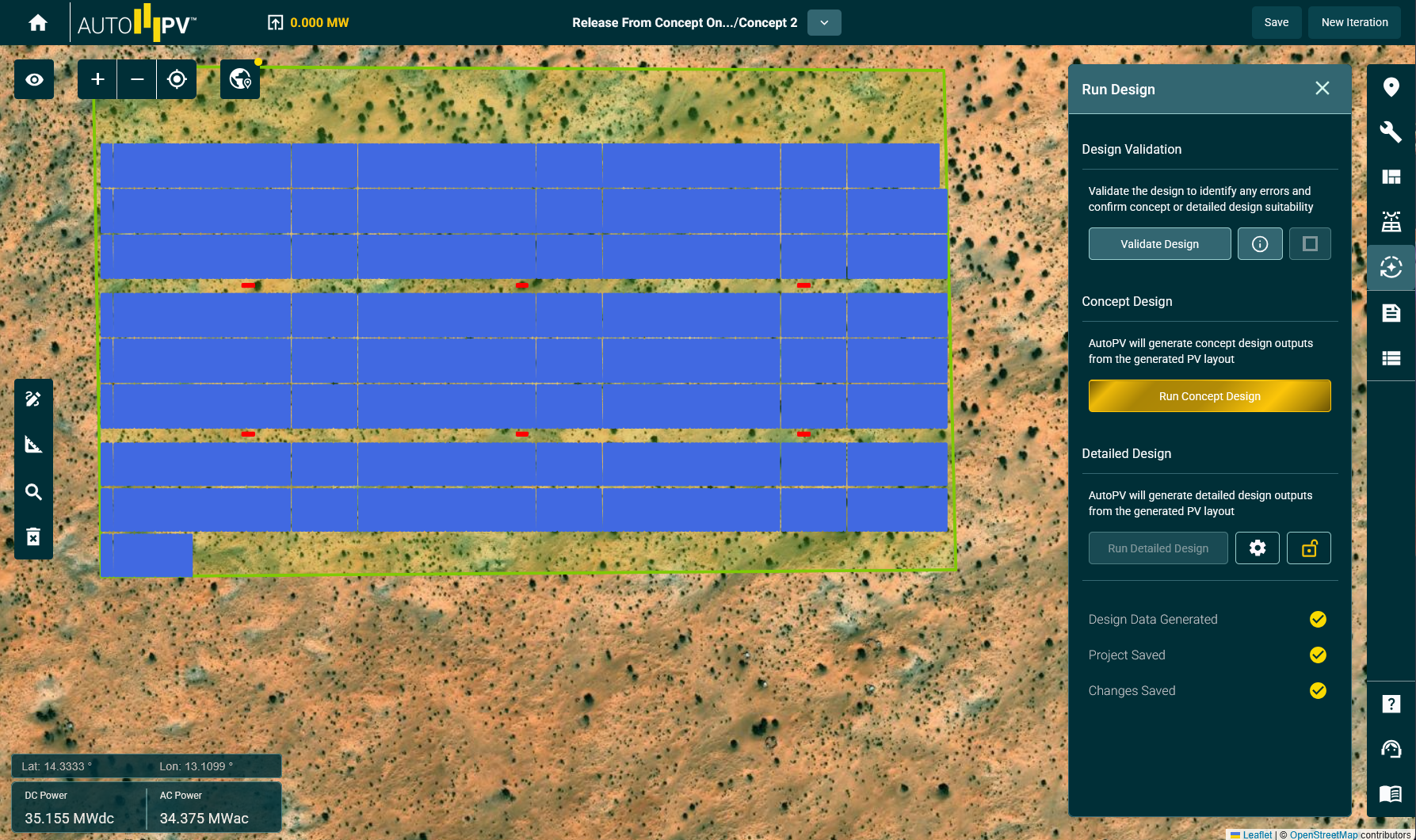

Once the Run Concept Design button is clicked, the total Token cost is determined based on the DC Capacity. If the available balance of Tokens is less than the required amount, it will not be possible to run the design. After confirming the Token spend, AUTOPV™ will generate the design output reports and reduce the available Token balance accordingly.

AUTOPV™ generates three Concept Design outputs:

• Bill of Quantities
• AutoCAD compatible DXF drawing of the layout only
• Yield report based on the Yield configuration
